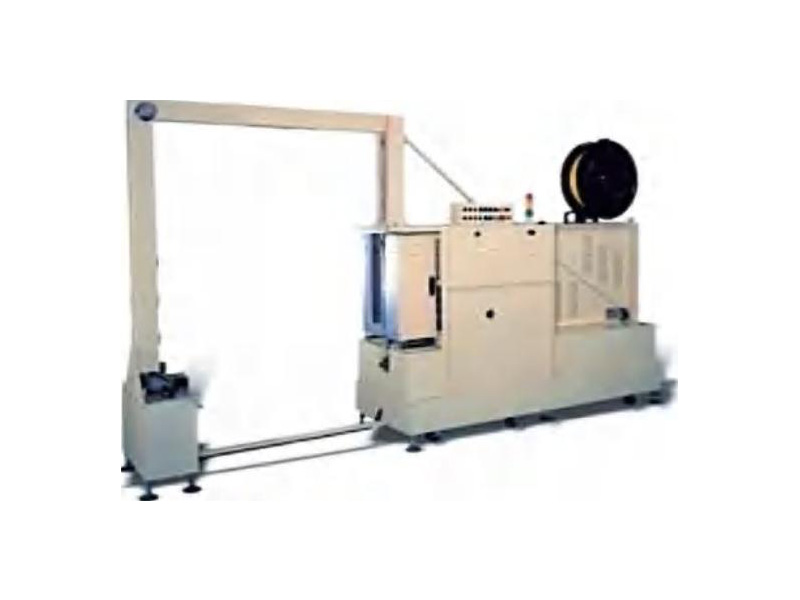

Sword piercing automatic baling machine

  • The sword piercing automatic bundling machine series is mainly designed for bundling pallets. It uses a hot melt method to securely bundle the pallets and bundles of goods after palletizing through a movable bow frame, ensuring the safety of movement and transportation. This series can achieve interconnection with palletizing machines and film wrapping machines, further reducing labor costs and improving production efficiency.

Scan code to watch product videos

Technical specification
EQUIPMENTSIZE: L3950×W660×H2883MM
SCOPE OF APPUCATION: FULLY LOADED WOODENPALLETOR PLASTIC PALLET
BAUNGSPEED: 22SECONDS/PIECE (EXCUUDING THE WAITING TIME FOR CONVEYING ROTATION)
PACKING BELT MATERIAL: PETOR PP SIZE OF PACKING BELT;WIDTH:12- 17MM; THICKNESS:0.6- 1.2MM
BOW FRAME SIZE: 2800(H)×2200(W)MM(CUSTOMIZABLE)
PACKING SIZE: 1200(L)×800(W)×2400(H)MM
BUNDUNG TGHTNESS: MAXIMUM 85KGS
OVERALL WEIGHT: 730KG
POWER: 1.2KW
